L130E Mobile Single Post Lift

[ release time :2019-12-16 09:21:19 ][ read :1869 ]

Feature

·Electrical release,Optional Manual release
·Swing lifting arms design, easy to operate
·ABS control box with rubber gasket sealing, water-resistant and prevent electric leakage
·24Volt safety control operation system
·Standard aluminum motor avoids overheated and ensures long service life
·Screw-up lifting pads with easy to test and located support points
·Surface shot blasting process, electrostatic powder spraying, strong surface adhesion and durable powder coating
·It has adopted 115% dynamic load capacity and 150% static load capacity test
·CE certificated

Technical Data

Model No. L130E
Lifting Capacity 3000Kg
Lifting Height 1900mm
Min. Height 90mm
Locking System Electrical Release
Carriage Height 600mm
Arm 2+2 535-810mm, 385-695mm
Electronic Control System 24V Control Box, 330*200
Lifting Time Approx.  50 sec.
Lowering Time Approx. 40 sec.
Equipment Weight 962Kg

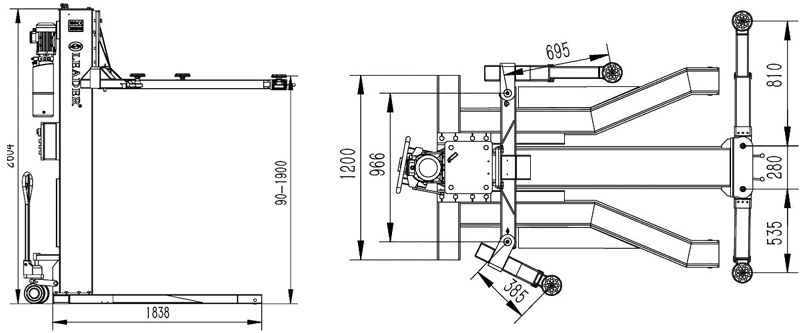

Overall Dimension

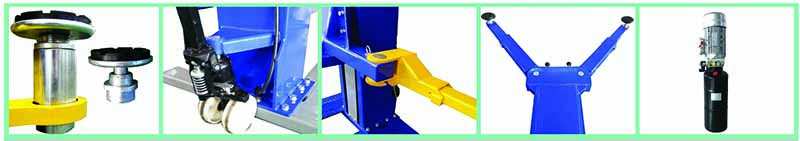

Details

Optional Parts
