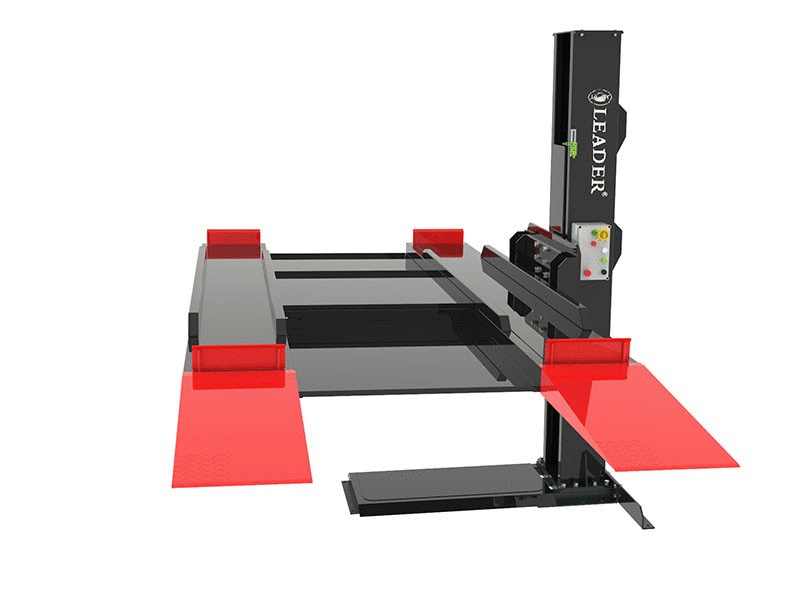

L127P Single Post Parking Lift

[ release time :2019-12-16 09:16:04 ][ read :1400 ]

Feature

·Single-Point Electric lock release, Optional manual release
·Multiple locking positions
·Hydraulic drive , operation smoothly of equipment
·Totally enclosed type oil drip and water drip pan, effectively prevent oil droplet and water drip
·With height limit switch of runways and ensures cylinders work within the stroke
·Surface shot blasting process, electrostatic powder spraying, strong surface adhesion and durable powder coating
·It has adopted 115% dynamic load capacity and 150% static load capacity test
·CE certificated


Technical Data

Model No. L127P
Lifting Capacity 2700Kg
Lifting Height 1900mm
Min. Height 120mm
Locking System Electrical / Manual Release
Platform Length 3860mm
Platform Width 609mm
Platform Space 880mm
Lifting Time About 50 sec.
Lowering Time About 35 sec.
Equipment Weight 1110Kg

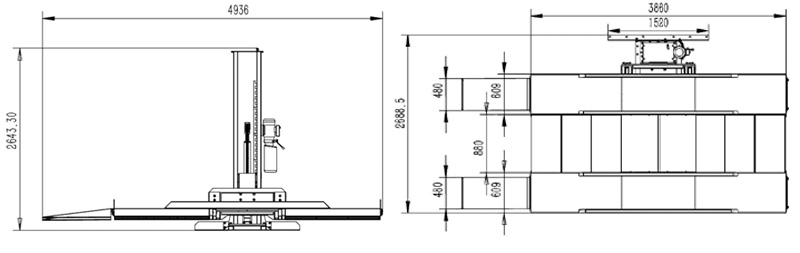

Overall Dimension

Details

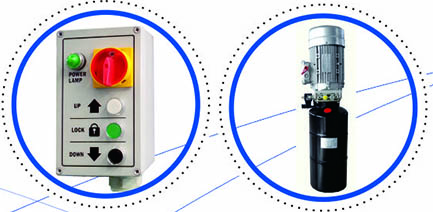

Optional Parts

Brochure
